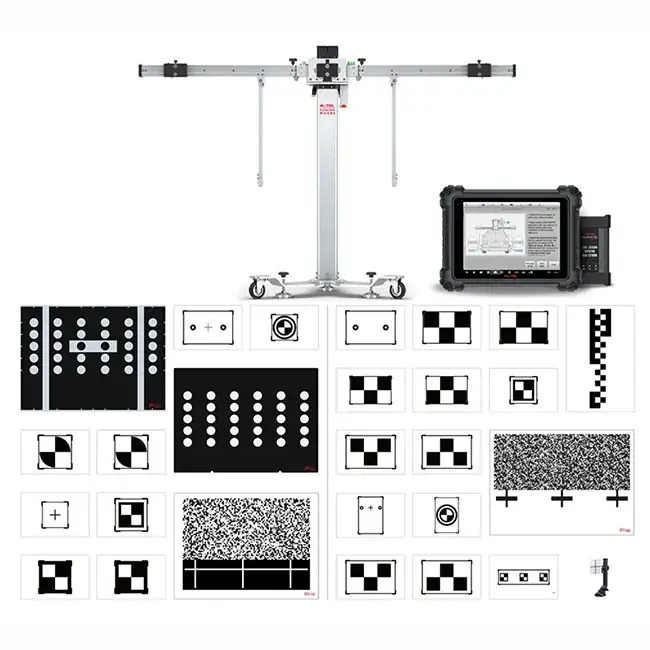

Autel ADAS MA60020T ADAS Mobile Calibration Frame, MS909 Tablet & Targets Limited Time

Autel MA600 LDW 2.0T Portable ADAS Calibration System with MS909 S2 Tablet ( Targets Included)

Part Number: MA60020T

The Autel MA600 LDW 2.0T is a portable ADAS calibration system designed for mobile and in-shop use. This complete package includes the MA600 frame, LDW target patterns, and the powerful MS909 S2 diagnostic tablet with ADAS software upgrade. Specifically configured to calibrate Lane Departure Warning (LDW) systems, it supports a wide range of makes including Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, and Toyota/Lexus. A Toyota LDA target is also included.

Lightweight, collapsible, and expandable, the MA600 platform offers a cost-effective entry into ADAS calibration. This package is upgradeable with optional expansion kits to cover Blind Spot Monitoring (BSM), Adaptive Cruise Control (ACC), Around View Monitoring (AVM), and Night Vision (NV) systems. One-year limited warranty included.

Includes:

Included Components

MA600 Mobile ADAS Calibration Frame

MaxiSYS MS909 S2 11″ Diagnostic Tablet with ADAS Software

LDW Targets & Patterns for major vehicle makes

ADAS Software Upgrade License

Toyota LDA Target

One-Year Limited Warranty

Supported Vehicle Makes for LDW Calibration

Alfa Romeo

Honda

Volkswagen

Mercedes-Benz

Hyundai / Kia

Nissan / Infiniti

Mazda

Mitsubishi

Subaru

Toyota / Lexus

MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.

Lane Departure Warning (LDW)MA600LDW2.0

Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

MaxiSys ADAS — MA600 Parts and Accessories

The MA600 provides accurate calibration procedures for camera based systems with accessories and targets. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It’s the new generation MaxiSYS MA600, smarter service made simple.

MaxiSys MS909 Tablet

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Processor
Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory
4GB RAM & 128GB On-board Memory

Display
9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity
WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel

Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery
15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions
(W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)

Weight
1.66kg (3.66 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Specification

Lane Departure Warning (LDW)MA600LDW2.0
Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

MaxiSys ADAS — MA600 Parts and Accessories
The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It’s the new generation MaxiSYS MA600, smarter service made simple.

Video

MaxiSys ADAS mobile solution — MA60020T Introduction
