Autel IA1000TDT ADAS Calibration & Wheel Alignment System with Digital Targets Price Drop

Autel MaxiSYS IA1000TDT Automated ADAS & Wheel Alignment System with Digital Targets

Part Number: IA1000TDT

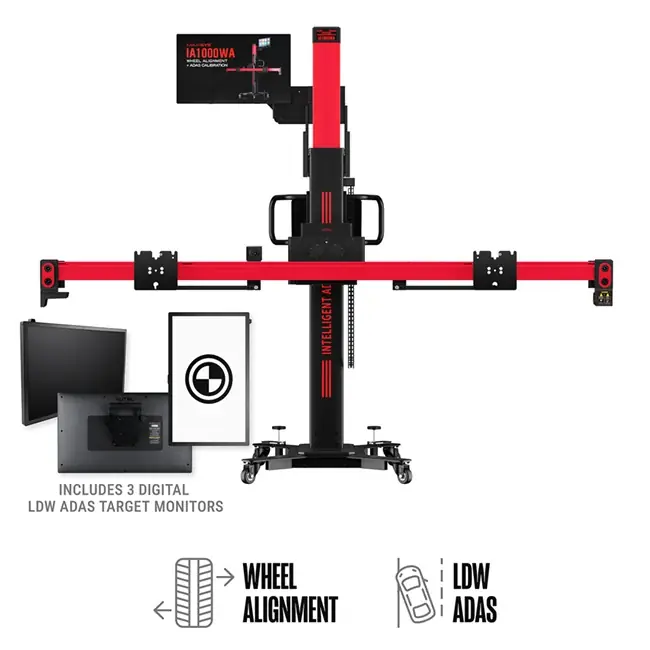

The Autel IA1000TDT is a fully equipped ADAS calibration and wheel alignment solution that includes the IA1000 robotic calibration frame, three digital target monitors, the Ultra S2 diagnostic tablet, and the required activation card. Designed for precision and workflow efficiency, this system offers automated target alignment, digital LDW target projection, and comprehensive four-wheel alignment capabilities. It’s ideal for high-volume shops looking to streamline both alignment and ADAS procedures across U.S., Asian, and European vehicles.

Key Features

Robotic 5-axis calibration frame for automated precision (pitch, roll, yaw, height, width)

Includes three 27-inch digital target monitors with auto-display and brightness control

Ultra S2 diagnostic tablet with Topology 3.0 and full-system diagnostics

Enables four-wheel alignment with 0.02° measurement accuracy

Laser-guided pattern placement for LDW, AVM, BSD, and ACC

Unlevel floor compensation adapts to various shop conditions

OTA software and target updates for continuous OEM compliance

Included Components

IA1000 Robotic Calibration Frame

Ultra S2 Diagnostic Tablet

IA1000 Activation Card

Three 27-inch Digital Target Monitors

Digital Target Activation Card

Accessory Kit (includes brackets and mounting tools)

Warranty Information

The IA1000TDT includes a 1-year limited warranty covering the calibration frame and tablet. Digital targets and activation cards are supported by Autel’s standard electronic component warranty.

Specifications

Model: AUTEL-CSC1000

Power Supply: 100–264 V, 50/60 Hz

Rated Power: 360 W

Calibration Frame Height: 65.75–109.06 in.

Crossbar Length: 106.30 in. unfolded

Crossbar Height Range: 11.18–98.43 in.

Camera Resolution: 3072 × 2048

Operating Temperature: 14–122 °F

Storage Temperature: -4–140 °F

Compatible Tablet: MaxiSYS Ultra Tablet Series
