Autel MAXISYS MS906PRO2-TS Advanced Diagnostic Tablet & TPMS Tablet Best Seller

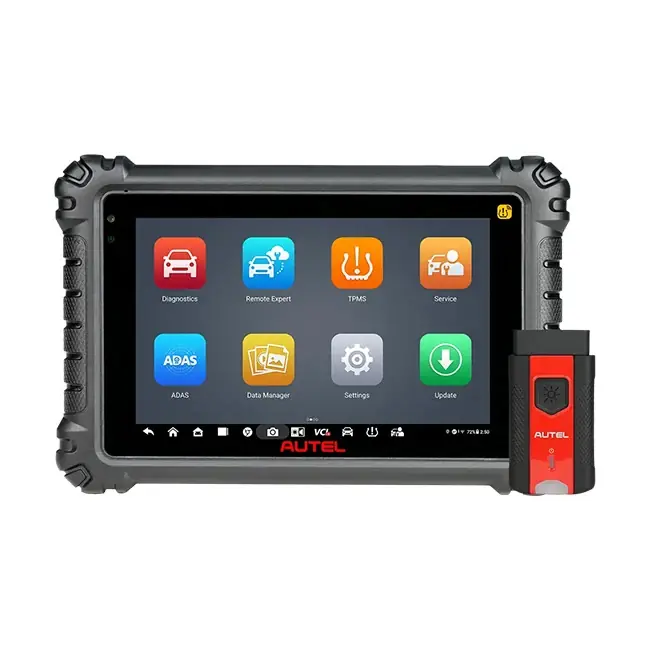

Autel MaxiSYS MS906 PRO2-TS Diagnostic & TPMS Tablet with Wireless VCI

Part Number: MS906PRO2-TS

The Autel MaxiSYS MS906 PRO2-TS is a powerful 8-inch Android-based touchscreen diagnostic tablet designed for advanced diagnostics, bi-directional control, and fully integrated TPMS services. Covering 1996+ U.S., Asian, and European vehicles, the MS906PRO2-TS features all-systems scanning, Pre- and Post-scan reporting, Live Data graphing, Active Tests, Special Functions, and advanced coding and adaptations. Its embedded TPMS antenna (315/433MHz and 2.4GHz BLE) offers wide compatibility, including support for Tesla vehicles.

With a robust octa-core processor, 4GB RAM, and 128GB onboard storage, the MS906PRO2-TS delivers rapid system performance and processing. It includes a Bluetooth-enabled MaxiVCI V200 interface that supports standard and advanced vehicle protocols, along with access to secure gateways for Mercedes-Benz, Nissan, VW/Audi, and Stellantis vehicles (AutoAuth or in-tool purchase required). The unit supports over 40 service functions including oil reset, DPF regen, steering angle calibration, brake bleed, and more. Includes 1 year of free software updates and a limited warranty.

Extensive U.S., Asian, and European vehicle diagnostic, service and TPMS coverage

Specifications

8.0-inch TFT-LED touchscreen (1920 x 1200 resolution)

Android 10 OS with 2.2GHz + 1.8GHz octa-core processor

4 GB RAM, 128 GB on-board memory

Integrated TPMS service (sensor activation, reading, relearning, and 1-Sensor programming)

Embedded TPMS antenna: 315/433 MHz & 2.4GHz BLE for wide vehicle support incl. Tesla

Pre & Post-scan reporting, live data graphing, active tests, special functions, and coding

Supports 40+ service & maintenance resets with direct system access

Bluetooth-enabled MaxiVCI V200 with standard/advanced protocol support

Rear & front cameras: 16 MP each with autofocus and flashlight

Wi-Fi, USB 2.0, USB-C, HDMI, SD card slot (up to 32GB)

Battery: 11,600 mAh 3.7V lithium-polymer; supports USB-C & 12V charging

Startup VIN scan, ADAS component ID, customizable reports (email/text/cloud storage)

Operating Temp: 0–50°C (32–122°F), Storage Temp: -10–60°C (14–140°F)

Housing: Durable plastic with protective rubber boot

Dimensions: 10.0″ x 6.9″ x 1.4″ | Weight: 2.12 lb. (0.962 kg)

Protocols: CAN, CAN FD, ISO 9142, ISO 13400, ISO 15765, K-Line, SAE J1850, J1939, J1708, GM UART, Honda Diag-H, and more

One-Year Limited Warranty + 1-Year Free Software Updates
