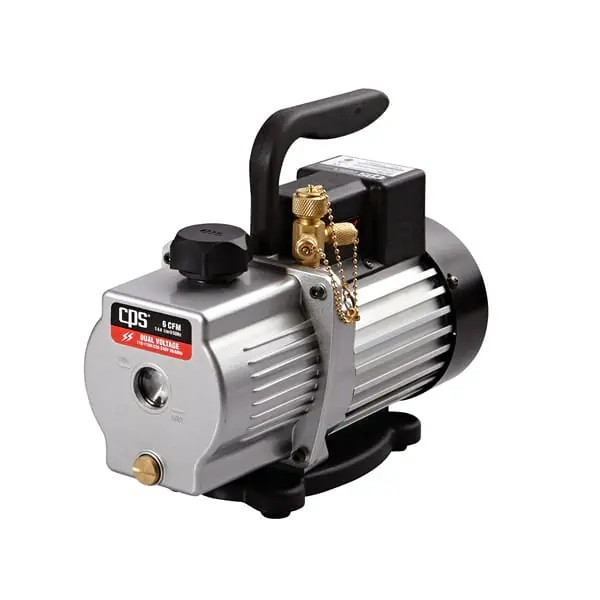

Get Yours CPS Products VP6S Pro-Set 6 CFM Vacuum Pump

CPS Products VP6S Vacuum Pump, Inlet Port Size 1/4″ and 3/8″ Flare, 1/2″ ACME, Displacement 6.0 cfm, 1/2 HP

MODEL# VP6S

The VP6S Pro-Set® Premium Series vacuum pump is a 6 CFM, single-stage unit with a versatile dual voltage 1 / 2 HP motor. The VP6S unit boasts the same high quality, high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.

VP6S Key Features:

Dual voltage operation 110-120V / 220V 50 / 60Hz

Exceptional ultimate vacuum rating as low as 50 microns

Advanced air cooled motor design for operation in high ambient temperatures

Proprietary oil mist free exhaust port cap for clean, safe job environment

Gas ballast valve speeds achievement of deep vacuum

Multiple port connections for 1 / 4″, 3 / 8″ and 1 / 2″ ACME

Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port

Solid rubber base provides extreme shock resistance

Sure-grip handle ergonomically designed for superior comfort and portability

Proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism

Improved materials selection including hardness and additives, reduces wear and prevents gallings

Improved internal oiling system design extends life and improves vacuum performance

Specifications

Power: 110V-120V / 220V 50 / 60 Hz USA plug

Stage: Single

Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 2 (HP) 2880 / 3440 RPM

Dimensions: 13.1″ x 5.5″ x 10″

Weight: 22.5 lb / 10.2 kg

Operating Temperature Range: 0 °C (32 °F) to 52 °C (125 °F)

Ultimate Vacuum: as low as 50 mirons

Oil Capacity: 19 oz / 550 ml

Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse

Control System: On-off power switch
