HAIMER 80.360.00.IN 3/4″ (19.05mm) Shank, 0.200″ Sensing Tip 3-D Tester Edge Finder Price Cut

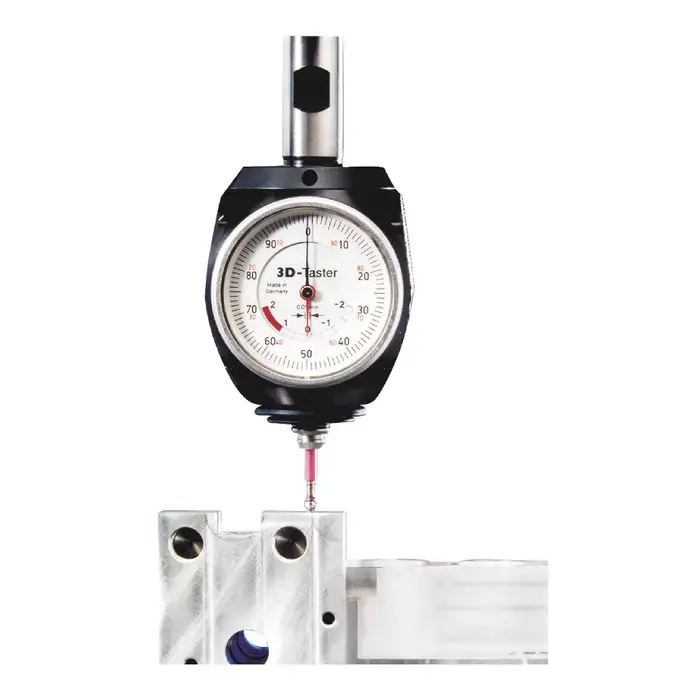

Finding Edges, Corners, Hole Centers Made Easy with Haimer’s Universal 3D-Sensors. The Universal 3D-Sensor is a versatile measuring instrument for edge finders and hole centers. It is easily compatible to be used in milling and EDM machines. Since you may approach the workpiece in any direction (X-, Y-, Z- axes), it is commonly referred to as a 3-D sensor. This allows for the length to be measured quickly and easily. Haimer 3-D Tasters are designed to reduce operator error in finding edges, corners, hole centers. It improves operational productivity by eliminating the need to calculate the probe’s ball diameter, unlike most other edge-finders. Instead, the edge is found by setting the dial gage to rest at zero. Using this German-made measuring device, you will be able to find the edge on the very first attempt. The sensor accuracy is such that you are able to inspect your parts right on the machine. The unit has a large overrun distance. It is in connection with the fully tested preset breaking points that the sensor gets a longer life. All Haimer Universal 3D-Sensors are tested individually when being assembled to ensure maximum measuring precision. The sensor unit is enclosed with IP67 protection, making it safe to use in harsh work conditions. Use only original HAIMER probe tips to achieve a measuring precision of 0.01 mm / 0.0004 inch on Universal 3-D Taster. The delivery set includes (1) Universal 3D-Sensor with clamping shank diameter 3/4 inch, short probe tip diameter of 0.2 inch.

Benefits

• Can measure all 3 axes on milling machines.
• Can measure surface flatness.
• Allows the operator to accurately position the machine table as the face of the indicator remains stationary in any desired position while the machine spindle rotates.
• No re-calibration of the unit is needed as the probe tips may be changed without any tool.
• The unit has a large overrun distance in connection with the fully tested preset breaking points giving the sensor long life.
• Even big workpieces can be measured as the housing does not protrude far out of the spindle.

Applications

• Use on milling and EDM machines.
• Locates edge of workpiece or jig.
• Provides a simplified method for centering workpiece or fixtures on horizontal or vertical machines, external or internal diameters – also with NC, EDM and other hard to turn spindles.
• Used on conductive as well as non-conductive workpieces.
• Accurately locates center of holes or shafts of any diameter, even grooved.
• Measures all 3 axes on milling machines.
• Can measure flatness.

Features

• Analog dial gage with bright markings for easy readings.
• Probe tips are insulated and replaceable and compatible with all HAIMER 3D-Sensors.
• The sensors can be equipped with a short (ball diameter 4 mm / 0.2″) and a long (ball diameter 8 mm / 0.4″) probe tip.
• Smallest unit of measure of 0.01 mm / 0.0004″
• Travel range: 0.175 inch in all 3 axes.
• Radial run-out compensation.
• IP 67 waterproof, ideal to use in harsh work conditions.
• Set includes 3-D Universal Taster and short sensing tip with 0.200 inch ball diameter.

Technical Documents & Manuals

• Operation Manual
