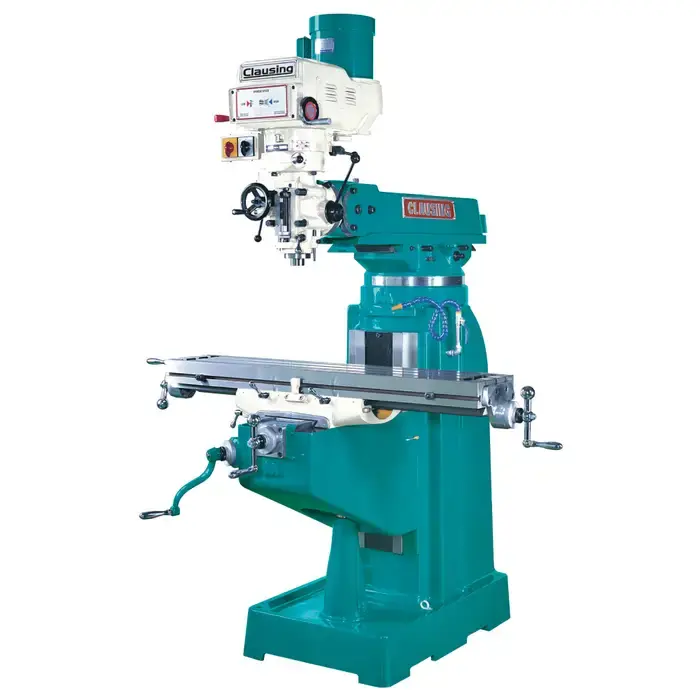

High Quality CLAUSING 2VS08 3 HP Knee Type Vertical Milling Machine

All The Features You Need, At An Affordable Price

If you’re searching for a heavy-duty standard vertical milling machine, at an affordable price, the Clausing knee mill is what you are looking for. The Clausing mill delivers all the power, precision and versatility you need to handle most milling jobs in your toolroom. The Clausing knee mill is one of the heaviest in its class and is equipped with a powerful spindle drive motor and an infinitely variable speed drive offering a speed range of 85 to 4,350 RPM. Quality At An Affordable Price

Features

• Meehanite castings for superior rigidity and wear resistance.
• Hardened & ground X, Y & Z ways.
• Dovetail table, knee and column ways.
• X/Y ways coated with Turcite B.
• Column and knee way covers.
• T-slots are ground to provide reference edge for positioning your workpiece.
• Hardened and ground table surface and spindle.
• Chromed and ground quill.
• Chromed X, Y & Z leadscrews.
• Double nut leadscrew for backlash compensation.
• ABEC 7/CP4 spindle bearings.
• Flexible segmented coolant nozzle.
• Chromed Y screw covers and one-piece wipers.
• Variable speed drive.
• Articulating head for compound angles.
• Worm gear angular positioning of head in two directions.
• Lever-operated manual rapid quill movement.
• Handwheel for fine quill feed.
• Adjustable automatic feed disengagement for quill feed.
• Reversing switch for clockwise or counter clockwise operation.
• Spindle brake (hand operated).
• One-shot lubrication.

Ships direct from factory.

Includes

• Coolant system with pump and switch.
• Micrometer depth stop.
• Halogen worklight.
• Tool kit, test and accuracy chart.
• Operations manual/parts list.

Technical Documents & Manuals

• Operation Manual
