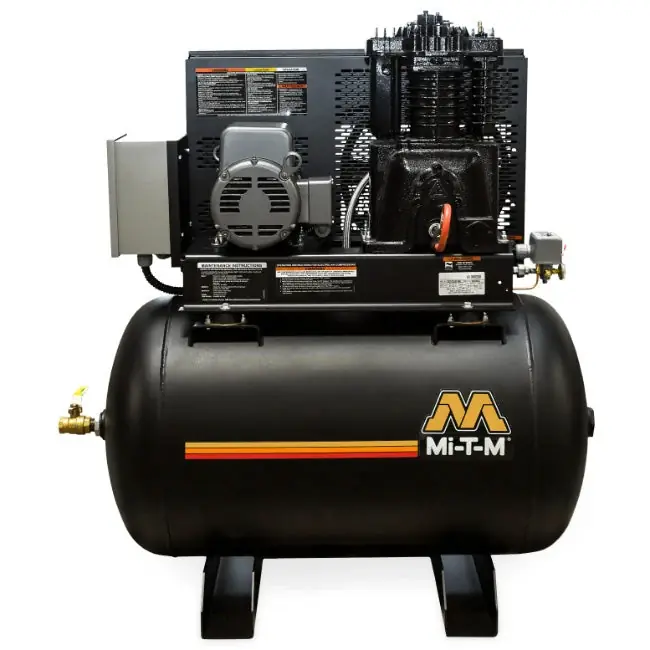

Instant Buy Mi-T-M ACS-23105-80H Air Compressor 230V, 1 Ph, 23A

Mi-T-M ACS-23105-80H – 230V, 1Phase, 23.0A – ACS Series 5.0 HP Simplex Horizontal – 80-Gallon Air Compressor

MODEL ACS-23105-80H

80-Gallon

ACS Series – 5.0 HP Simplex Horizontal

These horizontal 80-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ACS-23105-80H 230V, 1Phase, 23.0A 660 lb. ship wt./556 lb. net wt.
ACS-20305-80H 200V, 3Phase, 16.1A 630 lb. ship wt./526 lb. net wt.
ACS-23305-80H 230V, 3Phase, 13.8A 616 lb. ship wt./512 lb. net wt.
ACS-46305-80H 460V, 3Phase, 6.9A 616 lb. ship wt./512 lb. net wt.

Accessories (Not Included)

OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank

IX-0052 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

IX-0056 Pneumatic Tank Drain – Automatically drains liquid from compressor tank; unit cannot include an after cooler

IX-0057 Pneumatic Tank Drain – Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option

IX-0061 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0062 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0063 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Specifications

CFM @ PSI: 18.0 @ 175

Pump RPM: 860

Tank Size: 80-gallon

Bolt Down (LxW): 20.75 x 23.5 in.

Net Weight: 556 lb.

Shipping Weight: 660 lb.

Length: 52.00 in.

Width: 26.50 in.

Height: 53.00 in.
