KORLOY 1-09-022640 – 0.750″ – 90 Degree Indexable End Mill Set With Inserts (Single), Right Hand One Day Deal

Reduce Operational Cost with Alpha Mill Sets from the brand of Korloy. With the increase in the use of multi-operational tools, these Alpha Mill productivity sets effectively cover a wide range of applications. The Alpha Mill is a high rake angle multi-functional perpendicular shoulder milling tool engineered for machining applications including facing, shouldering, ramping, slotting, and much more. The entire machining cycle time is reduced by a single screw design as it shortens tool change time. Machinists can maximize productivity with Korloy’s Alpha Mill inserts (APMT/APXT) as its optimal convex & concave design greatly reduces vibration and cutting load to further extend tool life. The end mill inserts are nickel-coated and offer better application at high temperatures. A wide range of cutting diameters is available ranging from 0.500 to 2.000 inches. We are offering end milling tools in a set that includes an all coolant thru-capable milling holder, coated inserts, a wrench, a lubricating tube, a marking pen, all fitted in a sturdy, easy-to-carry case. Save up to 67% vs. purchasing individual components.

Benefits

• Korloy’s unique insert design offers low cutting resistance.
• Versatile 90° approach angle allows for multiple applications
• 11° relief angle offers smoother cutting.
• Coolant thru system allows for better chip evacuation and longer tool life with less heat.
• Nickel plating helps with lubricity.
• Screw-on system for less chip interference.
• Sets and customizable and available in multiple grades and chip breakers
• Multiple insert sizes provide varying depth of cuts and feed rates.

Applications

Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plunging.

Features

• Alpha End Mill productivity sets with APMT/APXT inserts.
• Versatile 90° approach angle.
• 11° relief angle to reduce tool pressure.
• Coolant thru capable.
• Simple screw clamping.
• Helical cutting edges and high axial rake angles.
• Nickel-plated strong and durable end mill bodies.
• Multiple lengths per cutting diameters.
• Wide chip pockets to help with chip evacuation.
• Available in multiple APMT style insert sizes, chip breakers, tolerances, and grades
• AMSA3000-K series accept standard APKT1604 inserts.
• AMSA2000-AP10 series accept standard APKT1003 inserts.

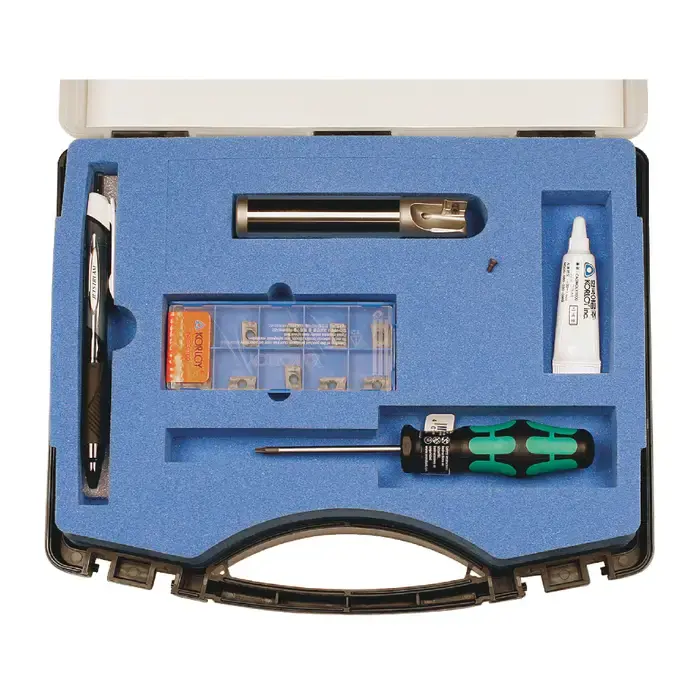

• Includes:
• (1) Milling holder (all coolant-thru capable).
• (10) Coated inserts.
• (1) Magnetic tipped Torx© wrench.
• (1) Small casmalloy lubricating tube.
• (1) Korloy ergonomic pen.
• Product literature.
• Fitted case for convenience and storage.

Includes

(1) AMSA2075HS (3/4″ ø) (10) APMT11T3PDSR-MM PC5300 Coated Inserts
