KORLOY 1-09-022676 – 1.500″ – 90 Degree Indexable End Mill Set With Inserts (Single), Right Hand Place Order

Reduce Operational Cost with PRO-X End Mill Sets from the brand of Korloy. With the increase in the use of multi-operational tools, these PRO-X Mill productivity sets effectively cover a wide range of applications and are designed to perform exceptionally well on aluminum & other non-ferrous workpieces. The PRO-X Mill is a high rake angle multi-functional perpendicular shoulder milling tool engineered for machining applications including facing, shouldering, ramping, slotting, and much more. The tool design makes it suitable for square shouldering and curved surface machining. The entire machining cycle time is reduced by a single screw design as it shortens tool change time. Machinists can maximize productivity with Korloy’s PRO-X Mill inserts (XEKT) as its optimal convex & concave design greatly reduces vibration and cutting load to further extend tool life. The end mill inserts are nickel-coated and offer better application at high temperatures. A wide range of cutting diameters is available ranging from 0.750 to 1.500 inches. We are offering end milling tools in a set that includes an all coolant thru-capable milling holder, coated inserts, a wrench, a lubricating tube, a marking pen, all fitted in a sturdy, easy-to-carry case. Save up to 67% vs. purchasing individual components.

Benefits

• Strong clamping due to the concave design of the insert bottom.
• Designed for high feed rates and high depth of cuts.
• Korloy’s unique insert design offers low cutting resistance.
• Coolant thru bodies to assist with chip control and tool life.
• Less build-up edge with polished insert surface and chip breaker.
• High rake angle of the insert offers a good surface finish and low cutting load.
• Sets and customizable and available in multiple radii.

Applications

Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plunging.

Features

• PRO-X End Mill Sets with XEKT Inserts.
• Versatile 90° approach angle.
• Sharp cutting edges, sharp 20° insert relief angle, and high axial rake angles.
• 3-dimensional chip breaker design for the low cutting load.
• Simple screw clamping.
• Coolant thru capable.
• Locking mechanism behind the insert secures it during high speed.
• Nickel-plated strong durable cutter bodies.
• Available in two insert sizes.
• Available in insert radii from 0.008 – 0.197 inch (style “B”holders for0.157 inch nose radius)
• Utilizes special-shaped inserts that are polished and ground.

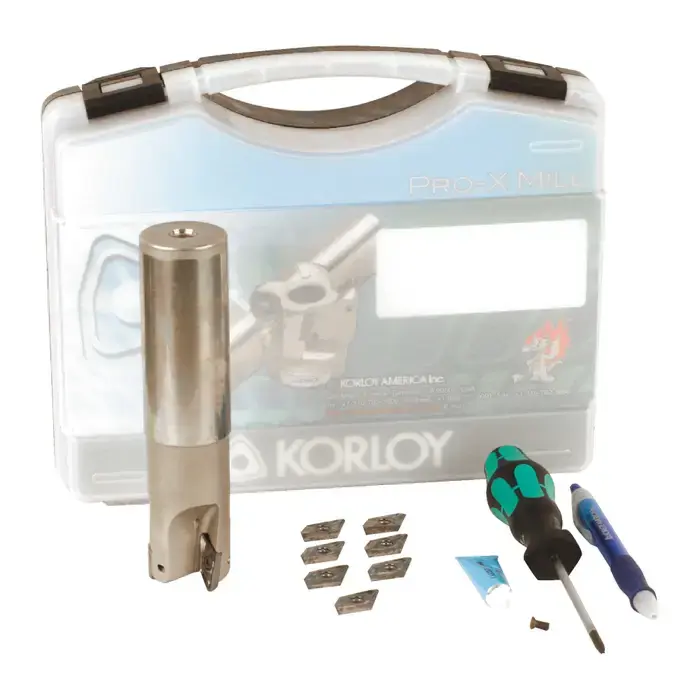

• Includes:
• (1) PAXSA Milling holder (all coolant-thru capable).
• (10) Polished inserts.
• (1) Magnetic tipped Torx© wrench.
• (1) Small casmalloy lubricating tube.
• (1) Korloy ergonomic pen.
• Product literature.
• Fitted case for convenience and storage.

Includes

(1)PAXSA5150HR-B (1.5″ ø) (10)XEKT19M550FR-MA H01 Polished Inserts
