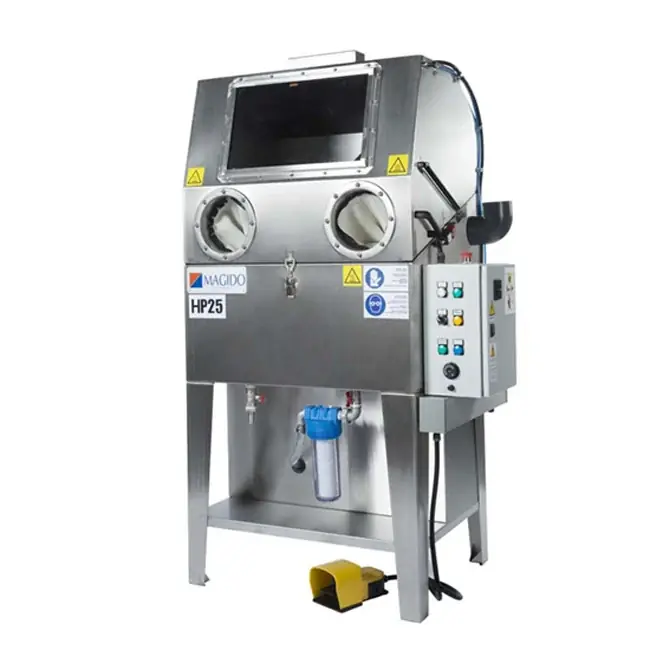

MAGIDO HP25 Manual Parts Washer High-Efficiency, Durable Water Based Cleaning Solution Latest

Magido HP25 Manual Parts Washer: High-Efficiency, Durable Water Based Cleaning Solution

THESE ARE BUILD TO ORDER 14-16 WEEKS TO SHIP

MODEL HP25

Elevate your parts cleaning process with the Magido HP25, a cutting-edge high-pressure manual parts washer designed for precision, durability, and efficiency. Constructed with superior 304 stainless steel, this robust machine ensures long-lasting performance in the most demanding industrial environments. Its array of standard features and technical specifications cater to a wide range of cleaning needs, making it an essential addition to your workshop or manufacturing facility.

Included

Manual Air Blowoff Gun

Oil Skimmer

Available Parts Washer Options (Not Included Sold Seperately)

Automatic Water Fill

24/7 Programmable Tank Heat Controller

Manual Flo-Thru Pump & Brush (external magnetic drive)

Steam Exhaust Fan

Key Features:

304 Stainless Steel Construction: Ensures durability and resistance against corrosion.

Foot Pedal Activated Spray Wand: Offers hands-free operation for precise cleaning.

LED Illuminated Cabinet: Enhances visibility for meticulous cleaning tasks.

Window Clearing Air Blower & Manual Air Blowoff Gun: Keeps the viewing area clear and aids in drying parts.

Dual Gas Support Springs & Locking Mechanism Lid: For easy access and safety, with an emergency door safety switch.

Liquid Level Sensor & Electric Tank Heater: Maintains optimal cleaning solution conditions.

Piston Drive Pump & Cartridge Filter: Provides reliable high-pressure cleaning and prolongs solution life.

Technical Specifications:

Optimal Working Height: 19.5 inches, with a spacious work area of 31×23.5 inches to accommodate various part sizes.

Load Capacity: Up to 350 lbs, with a loading height of 38 inches.

Solution Tank: Features a 38-gallon recirculating closed loop system, powered by a 2 HP pump delivering up to 870 PSI and 3.7 GPM flow rate.

Heating: 3 KW electric heater for optimal cleaning solution temperature.

Power Requirements: 220V/1Ph/30A with a control voltage of 24V/AC, and a compressed air requirement of 80 PSI.

Machine Dimensions:

Footprint: Length: 37 inches, Width: 45 inches, Height (with lid open): 79.5 inches.

Dry Weight: 319 lbs.

Operation and Maintenance:

The HP25’s sequence of operation is straightforward—load the parts, close the lid, wash, and then unload. Maintenance is simplified with features like the removable working table and isolation floor with a lift-out chip basket for debris removal. The tank drain, combined with the cartridge filter, ensures easy solution management and pump protection.

Certifications:

UL1204/CSA certified, this manual parts washer meets the highest safety and operational standards. The NEMA 4 electrical enclosure features an E-Stop & main power disconnect switch for added safety and compliance.

Ideal for Various Industries:

Perfect for automotive, aerospace, manufacturing, and any industry requiring precise and efficient parts cleaning, the Magido HP25 is a testament to quality and performance. Its manual operation allows for direct control over the cleaning process, ensuring that even the most challenging parts are thoroughly cleaned.

Elevate your cleaning standards with the Magido HP25 Manual Parts Washer—where durability meets innovation for unmatched cleaning performance.

Specifications

Working Envelope:

Optimal Working Height: 19.5 inches

Actual Cabinet Height: 29 inches

Work Area Width: 31 inches

Work Area Length: 23.5 inches

Capacity: Load Weight up to 350 lbs with a Loading Height of 38 inches

Solution Tank:

Volume: 38 Gal

Recirculating Closed Loop system

Pump Details:

Power: 2 HP

PSI: 870 PSI

Flow Rate: 3.7 GPM

Heating: 3 KW Electric Tank Heater

Drain Size: 1 inch

Power Requirements:

Voltage: 220V/1Ph/30A

Control Voltage: 24V/AC

Compressed Air: 80 PSI

Overall Machine Dimensions:

Length: 37 inches

Width: 45 inches

Height (Lid Open): 79.5 inches

Dry Weight: 319 lbs.
