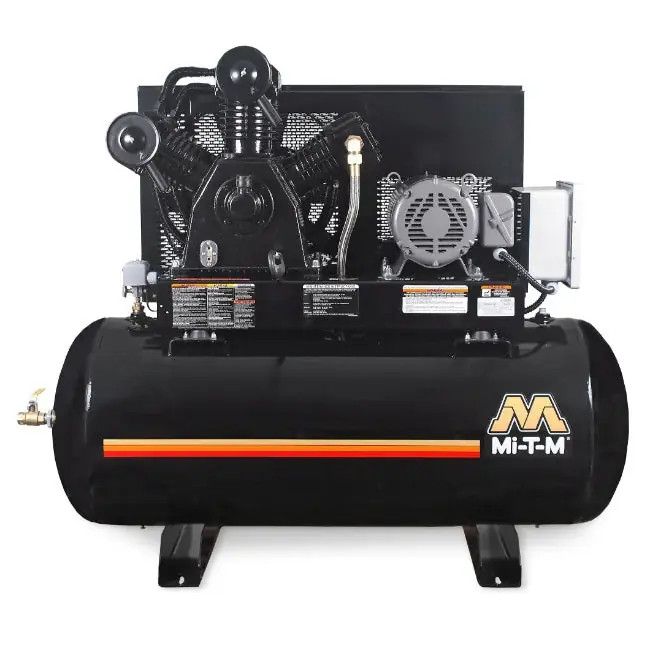

Mi-T-M ADS-23110-120H Air Compressor 230V, 1 Ph, 39A Price Cut

Mi-T-M ADS-23110-120H – 230V, 1Phase, 39.0A – ADS Series 10.0 HP Simplex Horizontal – 120-Gallon Air Compressor

MODEL ADS-23110-120H

120-Gallon

ADS Series – 10.0 HP Simplex Horizontal

These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ADS-23110-120H 230V, 1Phase, 39.0A 986 lb. ship wt./836 lb. net wt.
ADS-20310-120H 200V, 3Phase, 30.8A 966 lb. ship wt./816 lb. net wt.
ADS-23310-120H 230V, 3Phase, 26.8A 956 lb. ship wt./806 lb. net wt.
ADS-46310-120H 460V, 3Phase, 13.4A 956 lb. ship wt./806 lb. net wt.

Accessories (Not Included)

OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

IX-0003 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank

IX-0032 Pneumatic Tank Drain – Automatically drains liquid from compressor tank

IX-0064 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0065 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0066 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Specifications

CFM @ PSI: 34.2 @ 175

Pump RPM: 990

Tank Size: 120-gallon

Bolt Down (LxW): 34.5 x 23.5 in.

Net Weight: 836 lb.

Shipping Weight: 986 lb.

Length: 74.00 in.

Width: 26.50 in.

Height: 58.00 in.
