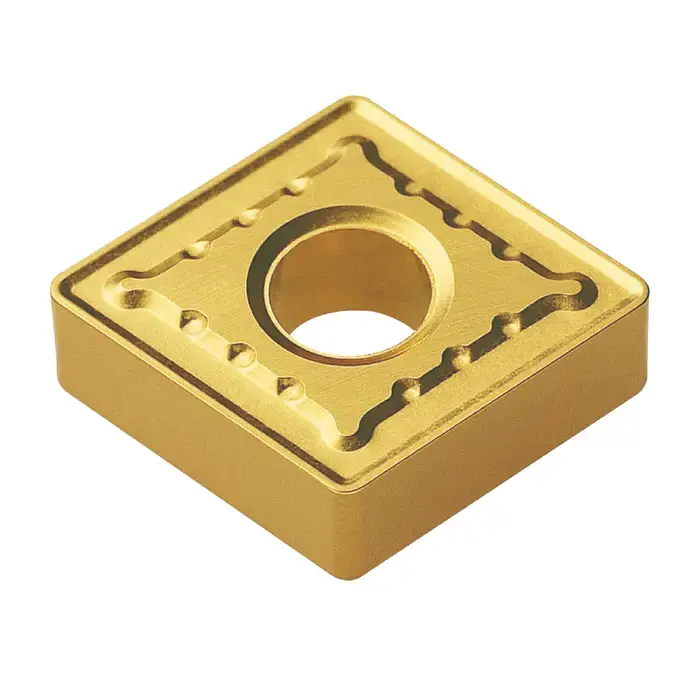

Price Drop KORLOY 1-02-024802 – CNMG644-GR NC3030, 80° Diamond, Indexable Carbide Turning / Boring Insert

Applications

This CNMG644-GR NC3030 insert supports cutting speeds from 427 to 820 sfm, feeds between 0.012 and 0.031 in/rev, and depths of cut up to 0.394 inches. It is designed for medium to low-speed roughing with general to interrupted cutting applications. It is optimized for ISO P25-P35 steels primarily, with secondary suitability for M25-M35 stainless steels. The negative rake chipbreaker and robust 80° diamond shape enable excellent performance in interrupted cuts and roughing, but it is not intended for precision finishing or profiling operations.

Features

• 80° Diamond Shaped Indexable Inserts.
• Versatile and dependable, “C” shaped inserts are one of the most popular shapes in the industry.
• Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (seperate holder needed to utilize 100° cutting edge).
• The 100° cutting edges are ideal for facing operations.
• Available in multiple chipbreakers & grades.
