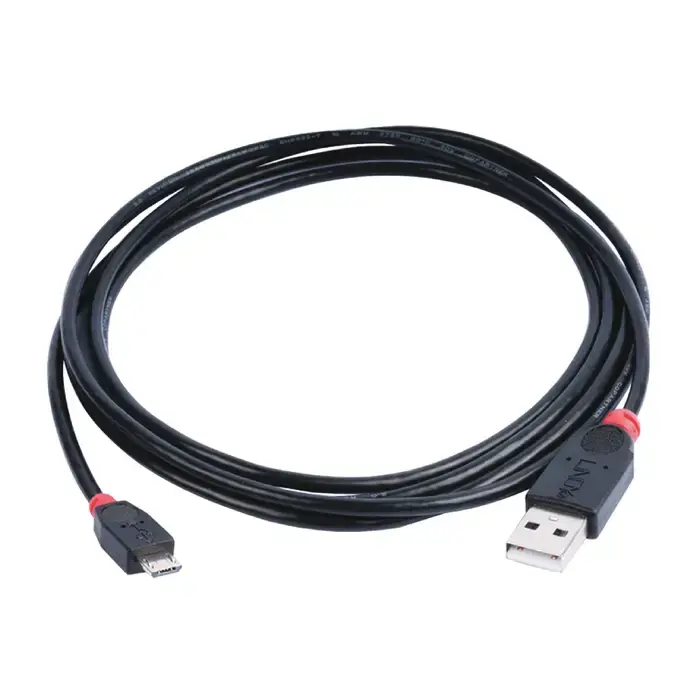

TESA BROWN & SHARPE 04760099 Cable Type, 06930013 Use With Surface Comparator Accessory Don't Miss Out
Home / Promotions & Deals / TESA BROWN & SHARPE 04760099 Cable Type, 06930013 Use With Surface Comparator Accessory Don’t Miss Out

TESA BROWN & SHARPE 04760099 Cable Type, 06930013 Use With Surface Comparator Accessory Don’t Miss Out

Original price was: $43.91.Current price is: $22.83.

For orders under $150.00, a shipping fee of $12.99 applies.

SKU: SKHWTA09F9Q Category: Tag:
Share

Machine Shop Solutions

Problem: Large analog roughness gages leave a lot of calculations and data logging to the machinist, doubling the required work with each measurement. Solution: A digital display combined with internal database creation and reporting features improves functionality for all production environments.

Robust, Versatile & Portable Roughness Results

Ace your profile tests with the portable surface roughness gage from TESA Brown & Sharpe, the leaders in precision metrology solutions. A wide measuring range offers 400 micrometers across the Z axis and 16millimeters on the X axisall easily viewable on the high contrast LCD display along with tolerance levels, roughness profiles as well as BAC and ADC results. Each RugoSurf 20 series gage is designed in accordance with ISO 3274 Class 1 accuracy, and provides 15 roughness parameters with individual activation and tolerance adjustment setting. Robust and versatile

Applications

Use with TESA Rugosurf 20

Features

  • Well suited for production environments or inspection of inward goods.
  • 15 roughness parameters that can be activated individually or not.
  • Tolerancing of each parameter value possible.
  • Direct display:of all measured values, with tolerance levels,of R roughness profilethe Bearing Area Curve (BAC)the Amplitude Distribution Curve (ADC)
  • High contrast LCD display for optimum visual representation.
  • Flexible autonomy through mains adapter or battery pack.
  • Storage of the measured parameters.
  • Multilingual menu options.
Ships direct from factory.
Optional Accessories
  • USB cable connection.
  • Measurement transfer, database creation and reporting available using TESA RUGOSOFT software tool.
  • Access to narrow and hard to reach locations possible through 100mm probe extension.

Includes

  • Roughness standard, Ra = 2.97 µm (117 iµn).
  • Clamping shaft for the 8mm diameter universal support.
  • Positioning holders.
  • Standard SB10 probe.
  • Rechargeable battery (already mounted).
  • Charger: 220/110V
