Today Only Autel MaxiSYS S2ADAS900 Ultra S2 Diagnostic Tablet with IA900 ADAS & Alignment Software

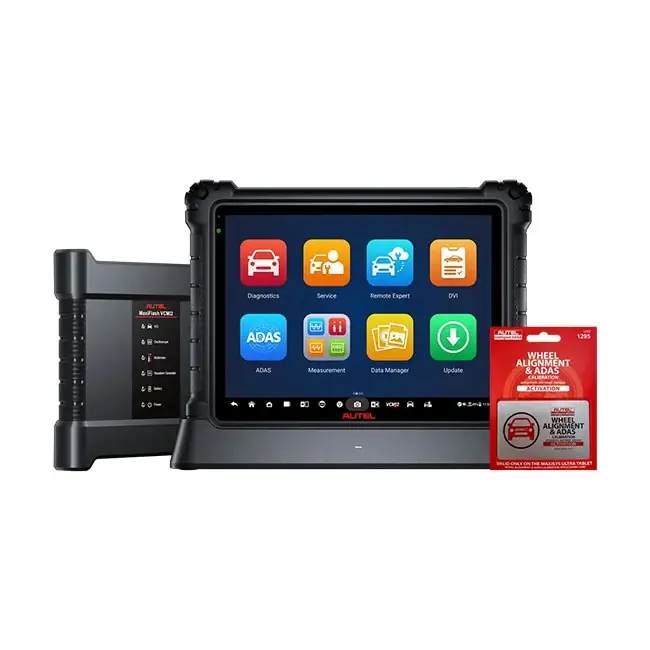

Autel MaxiSYS Ultra S2 Diagnostic Tablet with IA900 ADAS & Alignment Software

Part Number: S2ADAS900

The Autel MaxiSYS Ultra S2 is Autel’s most advanced 13.7-inch Android-based diagnostic tablet, designed for high-end diagnostics and ADAS calibrations. It ships with IA900 software for both 4-wheel alignment and static/dynamic ADAS calibrations, supporting camera, radar, lidar, and night vision systems. Covering U.S., Asian, and European vehicles from 1996 and newer, the Ultra S2 offers OE-level diagnostics, special functions, and advanced coding and adaptations.

With 512GB storage, 12GB RAM, and a 2.7GHz 8-core processor, this tool delivers blazing-fast performance. The streamlined MaxiFlash VCMI2 serves as a 6-in-1 VCI, 4-channel oscilloscope, multimeter, waveform generator, and J2534 pass-thru programmer. New features include Topology 3.0 with ECU pinging, enhanced live data graphing with PID fusion and reference sampling, AI-powered DVI with dent/scratch detection, and the MAX hands-free voice assistant. Includes 1 year of free MOTOR TruSpeed repair data, 1-year software updates, and a 1-year limited warranty.

Specifications

13.7″ anti-glare touchscreen display (2176 x 1600 resolution)

Android 13 OS with 2.7GHz QCS6490 Octa-core processor

512GB on-board storage, 12GB RAM

Includes IA900 4-Wheel Alignment & ADAS Calibration Software

Supports static and dynamic ADAS calibration procedures

MaxiFlash VCMI2 (J2534 pass-thru, oscilloscope, multimeter, and more)

Topology 3.0 – ECU network mapping with module ping/trace

Live Data Fusion, Parameter Grouping, Reference Sampling

AI-powered DVI with scratch/dent detection

Hands-free voice navigation with MAX Virtual Assistant

48+ Maintenance Service Tasks and Quick Access Menu

Dual 16MP cameras (front and rear)

Connectivity: Dual Wi-Fi 6, Bluetooth, USB 2.0, USB-C, HDMI 2.0, SD Card slot

Battery: 18000mAh lithium-polymer with fast charging dock

Startup Time: 18 seconds

VCI Protocols: DoIP, CAN FD, J2534, D-PDU

Security Gateway Access: Stellantis, Mercedes-Benz, Nissan, VW/Audi

Weight: 1656.5 g (3.65 lbs.)

One-Year Limited Warranty + 1-Year Free Software Updates
