Trusted Brand TSI 350B Back Buddy II TSI

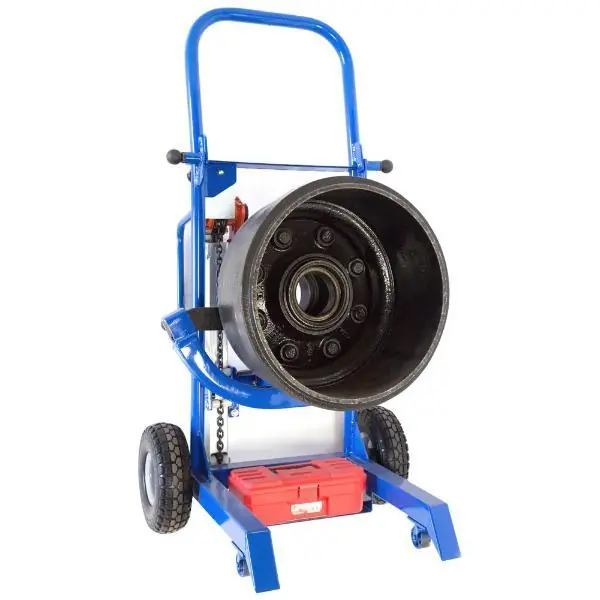

TSI 350B Back Buddy II

Model Number: 350B

The 350B Back Buddy II™ will make brake jobs easier and more profitable. This versatile tool was designed to prevent injuries from awkward lifting and keep workers’ comp rates down. The Back Buddy II™ rolls under and bolts onto heavy drum and hub assembly, then handily rolls the assembly out and lays it over for servicing. Re-assembly is quick and precise because the Back Buddy II™ angles for perfect hub alignment, eliminating seal damage and costly fixes.

The Back Buddy II™ handles all hub and drum assemblies with Universal Receiver and Adapter Sets. A simple change of adapters transforms the tool in seconds from inboard to outboard application.

*Adapters 6069 and 6073 10-hole inboard and outboard application are included

Optional Adapters(Sold Separately):

6069 – MKA2/2HD | 10 stud inboard hubs. Studs 335 mm on center

6073 – MKA3/3HD | 10 stud outboard hubs. Studs 11.25″ on center, 3/4″ hub back plate thickness

6071 – MKA4 | 5 and 6 spoke hub and drum

6074 – MKA5 | 8 stud inboard hubs. Studs are 275 mm on center

6075 – MKA6 | 8 stud outboard drum. Studs are 275 mm on center with 1/2″ hub back plate thickness

6076 – MKA7 | 6 stud inboard hubs. Studs are 8 3/4″ on center

6077 – MKA8 | 6 hole outboard drum. Studs are 8 3/4″ on center with 1/2″ hub back plate thickness.

6067 – MKHMV | 8 stud inboard hubs. Studs are 6 1/2″ on center for Hummer/Humvee geared hubs

Specifications

WEIGHT 135 lbs
DIMENSIONS 40 x 36 x 40 in

Video

TSI 350B Back Buddy II | TSI
