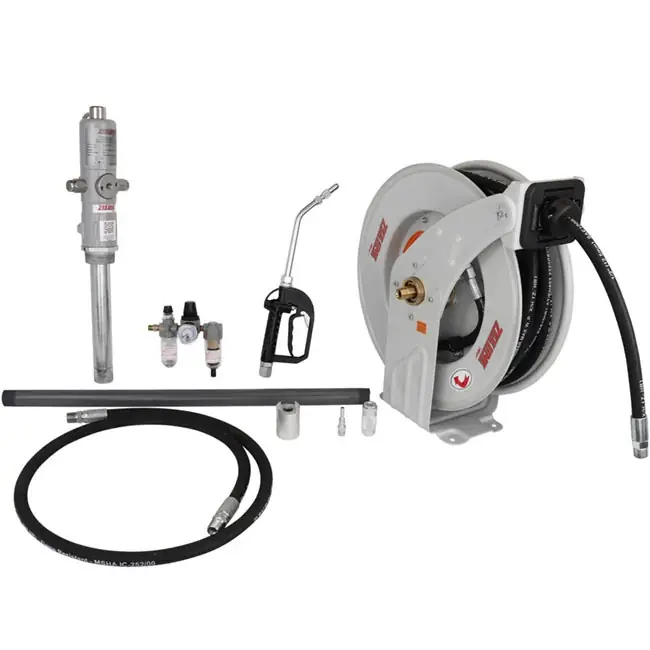

Zeeline by Milton ZE1700K-55-400 – 3 1 Eco Series Pump Kit 55 Gal With Reel and Nozzle Get Yours

ZE1700K-55-400 – 3:1 Eco Series Pump Kit 55-Gal With Reel and Nozzle

Model: ZE1700K-55-400

This 3:1 Pump Package was built with professionals in mind and was designed to be used with low, medium, and high viscous oils such as motor oil, transmission fluid, hydraulic oil, and more! This Pump package includes, a 50-foot hose reel, 3:1 Pneumatic Pump, Preset Digital Oil Control Valve, Suction Tube, Foot Valve, and FRL.

This package will work with a 55-Gallon Drums. (Not Included)

Application:
The ZE1700K-55-400 Pump Kit is an all-in-one solution for professional-grade oil transfer. With its high-capacity hose reel, robust pump, and precise control valve, it is ideal for workshops, service centers, and industrial applications requiring reliable and efficient oil handling for 55-gallon drums.

Includes:

ZE1700K3:1 Pump

ZE1250ORHose Reel

ZE2511 Oil Control Valve

Features:

Heavy-Duty Pump: 3:1 ratio oil transfer pump for medium to high viscosity fluids for short to medium distance applications.

High Flow Rate: 3.9 GPM (15 LPM) flow rate allows for quick and efficient dispensing of fluids.

Variety of Fluid Types: Can be used with SAE 130 oils and fluids that include motor oil, gear oil, hydraulic oil, synthetic hydraulic oil, and transmission fluid.

Fast and Efficient delivery: 1-10 GPM delivery rate with a maximum working pressure of 1000 PSI.

Built to Deliver: The 50-foot x ½ in. diameter hose reel has a maximum pressure of 2320 PSI which allows for maximum delivery of petroleum and water based hydraulic fluids.

Specifications

Pump Ratio: 3:1 (Pneumatic Oil Transfer Pump)

Flow Rate: 3.9 GPM (15 LPM)

Delivery Rate: 1-10 GPM

Maximum Working Pressure: 1000 PSI

Hose Reel Dimensions: 50 ft. x 1/2 In. diameter

Hose Reel Maximum Pressure: 2320 PSI

Compatible Fluids:

SAE 130 oils

Motor oil

Gear oil

Hydraulic oil

Synthetic hydraulic oil

Transmission fluid

Fluid Types: Petroleum and water-based hydraulic fluids

Drum Compatibility: 55-gallon drums

Components Included:

Pump: ZE1700K 3:1 Pneumatic Pump

Hose Reel: ZE1250OR (50 ft.)

Oil Control Valve: ZE2511

Suction tube

Foot valve

FRL (Filter, Regulator, Lubricator)
